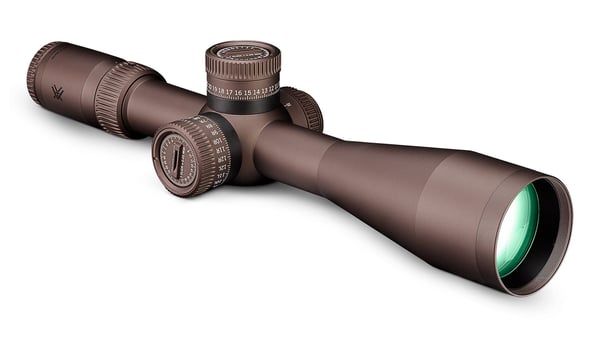

Built around the perfect balance of magnification and field of view, the Razor® Gen III 6- 36x56 FFP delivers the resolution and contrast you need for long-range, tactical shooting. To get the absolute most out of the first focal plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. Round it out with a rugged build and you have the long-range, tactical solution you've been waiting for.
FEATURES
- First Focal Plane Reticle- Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting.
- L-Tec+™ Zero System- The L-Tec+™ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel.
- HD Optical System- Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
- Micro Adjust Zero Setting- Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
- External Rotation Indicator- Provides quick visual and tactile reference of elevation turret's rotational position.
- XR™ Plus Fully Multi-Coated- Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
- Optically Indexed Lenses- Optimize image sharpness and brightness from edge to edge.
- Plasma Tech- Cutting edge coating application process provides unparalleled coating durability and performance
- Glass-Etched Reticle- Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- Aircraft-Grade Aluminum- Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- ArmorTek ®- Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Hard Anodized Stealth Shadow Finish- Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- Locking Side Illumination- Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
- Waterproof- O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Shockproof- Rugged construction withstands recoil and impact.
- Fogproof- Argon gas purging prevents internal fogging over a wide range of temperatures.
SPECIFICATIONS
-
Magnification 6-36x
-
Objective Lens Diameter 56 mm
-
Eye Relief 3.5 inches
-
Field of View 20.5-3.5 ft @ 100 yds
-
Tube Size 34 mm
-
Turret Style Exposed Locking
-
Adjustment Graduation 1/4 MOA
-
Travel Per Rotation 25 MOA
-
Max Elevation Adjustment 120 MOA
-
Max Windage Adjustment 52.5 MOA
-
Parallax Setting 10 yds to infinity
-
Length 15.3 inches
-
Weight 45.1 oz
- Included in the Box:
- 3 Inch Sunshade
- Throw Lever
- Lens Cloth
- CR2032 Battery
- Custom 2mm Throw Lever Tool
- 2.5mm Turret Tool
