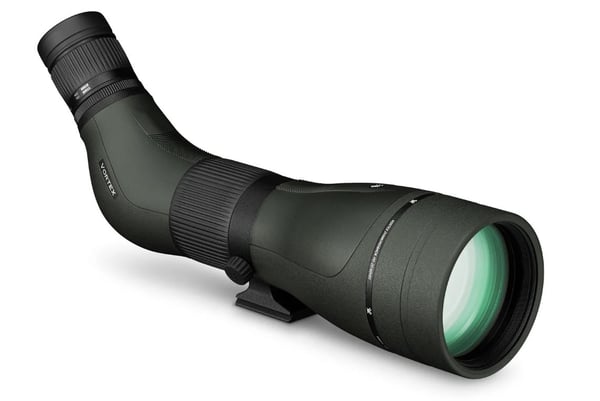

Vortex Diamondback HD 20-60x85 Angled
Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. We've also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.
FEATURES
OPTICAL FEATURES
- HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
- Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
CONSTRUCTION FEATURES
- ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Shockproof Rugged construction withstands recoil and impact.
- Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
- Rubber Armor Provides a secure, non-slip grip, and durable external protection.
CONVENIENCE FEATURES
- Adjustable Eyecups Twist up and down for comfortable viewing with or without eyeglasses.
- Helical Focus Allows for fast and fine adjustments.
- Arca-Swiss Compatible Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
- Tripod Adaptable Allowing use on a tripod or car window mount. Tripod adapter required.
- Rotating Tripod Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
- Built-in Sunshade Reduces glare and shields the objective lens from raindrops and snow.
SPECIFICATIONS
- Lens cloth
- Magnification 20-60x
- Objective Lens Diameter 85 mm
- Linear Field of View 108-60 ft/1000 yds
- Angular Field of View 2.1-1.1 degrees
- Close Focus 24.6 feet
- Eye Relief 20.3-18.3 mm
- Exit Pupil 4.25-1.41 mm
- Length 16 inches
- Weight 60.9 oz
Included in the Box
- Neoprene cover
- Tethered objective lens cap
- Tethered ocular lens cap
- Lens cloth
