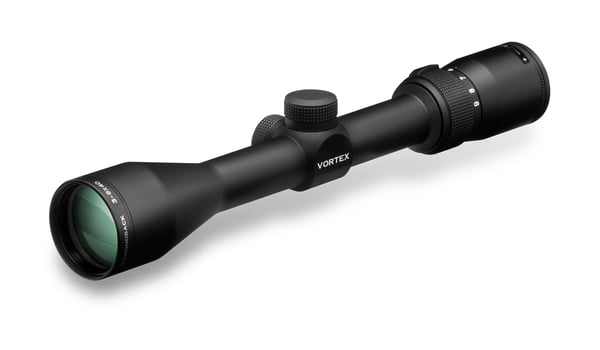

Vortex Diamondback 3-9 x 40 Riflescope V-Plex
The Diamondback — loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. Vortex can live with that.
- 3-9x40 riflescope is ideal for big game, muzzleloader, and slug shotgun applications.
- V-Plex reticle is the single best all-purpose hunting reticle intended for a wide variety of hunting applications.
FEATURES
OPTICAL FEATURES:
- Fully Multi-Coated - Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
CONSTRUCTION FEATURES:
- Tube Size - 1-inch diameter.
- Single-Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof - Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof - Rugged construction withstands recoil and impact.
- Hard Anodized Finish - Highly durable low-glare matte finish helps camouflage the shooter's position.
- Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.
INTERNAL MECHANISM DESIGN FEATURES:
- Precision-Glide Erector System -Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
CONVENIENCE FEATURES:
- Fast Focus Eyepiece - Allows quick and easy reticle focusing.
SPECIFICATIONS
- Magnification: 3-9 x
- Objective Lens Diameter: 40 mm
- Eye Relief: 3.3 inches
- Field of View: 44.6-14.8 feet/100 yards
- Tube Size: 1-inch
- Turret Style: Capped
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 15 MOA
- Max Elevation Adjustment: 70 MOA
- Max Windage Adjustment: 70 MOA
- Parallax Setting: 100 yards
- Length: 11.7 inches
- Weight: 14.4 ounces
