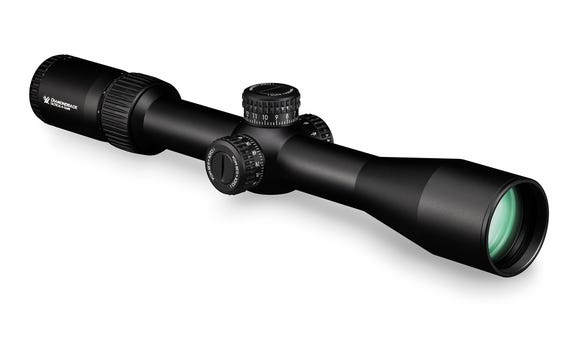

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.
Features
- XD™ Lens Elements
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. - Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. - First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. - Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. - Tube Size
30 mm diameter provides maximized internal adjustment and strength. Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. - Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. - Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures. - Shockproof
Rugged construction withstands recoil and impact. - Hard Anodized Finish
Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Specifications
- Magnification 4-16x
- Objective Lens Diameter 44 mm
- Eye Relief 3.8 inches
- Field of View 26.9-6.7 ft/100 yds
- Tube Size 30 mm
- Turret Style Tall Exposed Tactical
- Adjustment Graduation 1/4 MOA
- Travel Per Rotation 15 MOA
- Max Elevation Adjustment 85 MOA
- Max Windage Adjustment 85 MOA
- Parallax Setting 20 yards to infinity
- Length 14.06 inches
- Weight 23.1 oz
Reticle
EBR-2C (MOA)
Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
