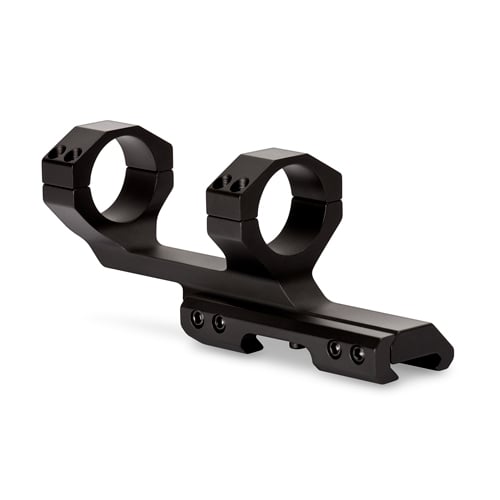

Use this cantilever mount for mounting 30 mm telescopic sights onto flattop style AR-15 rifles. The 2-inch offset of this cantilever mount positions the scope in a forward location, allowing the correct eye relief and head placement on an AR-15. Aluminum construction.
Note:
The cantilever ring mount positions the center of the riflescope tube at a height of 1.59 inches (40.39 mm) from the base.
SPECIFICATIONS
- Base Screws: 20 in/lbs
- Ring Screws: 16 in/lbs
- Weight: 6.75 oz
- Mounting Bit Required: Torx 15
- 2" Offest
