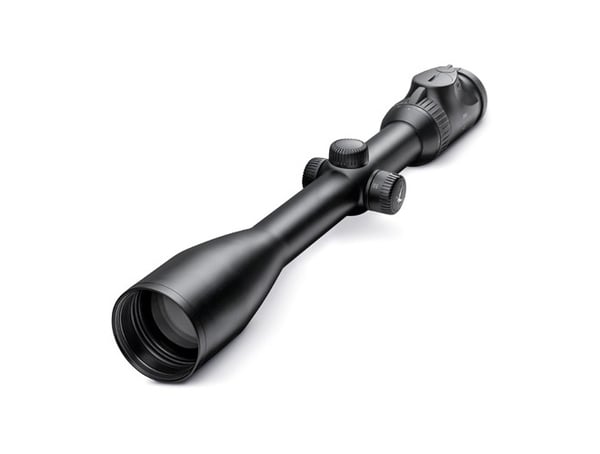

You can aim accurately only if you can see accurately. The Z6(i) 5-30x50 P (BT) is the long-range specialist. Its great strengths lie in its reticle’s low subtension values, the 30x magnification, lateral parallel turret, and HD optics.
Accuracy for the longest ranges. Thanks to its reticle’s low subtension values and the 30x magnification, the illuminated Z6i 5-30x50 P L offers the ideal prerequisites for shooting over particularly long distances. HD optics and lateral parallax correction guarantee you a faultless image.
TECHNICAL DATA
Magnification: 5-30x
Effective objective lens diameter (mm): 48.2-50
Exit pupil diameter (mm): 9.5-1.7
Exit pupil distance (mm) (Eye relief): 95
Field of view (ft/100 yds / m/100 m): 23.7-3.9 / 7.9-1.3
Field of view (degrees): 4.5-0.75
Field of view, apparent (degrees): 22.8
Dioptric compensation (dpt): -3 to +2
Light transmission (%): 90
Twilight factor acc. to ISO 14132-1: 14.1-38.7
Impact point corr. per click (in/100 yds / mm/100 m): 0.18 / 5
Max. elevation / windage adjustment range (in/100 yds / m/100 m): 43.2-25.2 / 1.2-0.7
Parallax correction (yds / m): 55-8 / 50-8
Objective filter thread: M 52x0.75
Length (in / mm): 15.67 / 398
Weight (oz / g): 21.9 / 620
Central tube diameter (in / mm): 1.18 / 30
Functional temperature: -4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature: -22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness: 13 ft / 4 m water depth (inert gas filling)
Brightness levels Twilight: 0 - 32 / Day: 33 - 64
Operating time (h)Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
