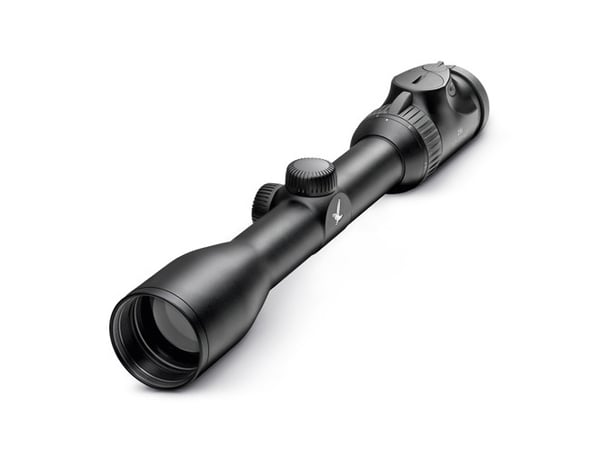

The Z6(i) 1.7-10x42 (BT) demonstrates its performance both on a still hunt and when hunting in a stand. This slim rifle scope overcomes any challenge on any terrain. This is because its immense field of view and 6x zoom support versatile use, which ranges, being totally suitable for hunting, from the forest, across fields, and into the mountains.
The illuminated Z6i 1.7-10x42 L is ideal for hunting. Its slim design makes it the perfect fit for traditional firearms, as well as for still hunting or mountain hunting.
TECHNICAL DATA
Magnification:1.7-10x
Effective objective lens diameter: (mm) 16.0-42
Exit pupil diameter (mm): 9.6-4.2
Exit pupil distance (mm) (Eye relief): 95
Field of view (ft/100 yds / m/100 m): 75.6-12.6 / 25.5-4.2
Field of view (degrees): 14.3-2.4
Field of view, apparent (degrees): 23.7
Dioptric compensation (dpt): -3 to +2
Light transmission (%): 90
Twilight factor acc. to ISO 14132-1: 4.7-20.5
Impact point corr. per click (in/100 yds / mm/100 m): 0.36 / 10
Max. elevation / windage adjustment range (in/100 yds / m/100 m): 54 / 1.5
Objective filter thread M 44x0.75
Length (in / mm): 12.75 / 324
Weight (oz / g): 17.3 / 490
Central tube diameter (in / mm): 1.18 / 30
Functional temperature: -4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature: -22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness: 13 ft / 4 m water depth (inert gas filling)
