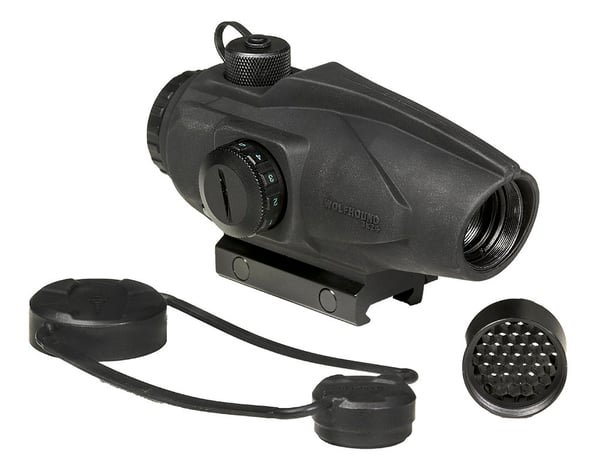

SIGHTMARK Wolfhound 3 x 24 mm HS-223 Prismatic Weapon Sight

Delivering flawless short- to medium-range shots on an AR platform, the Sightmark® Wolfhound 3x24 Prismatic Weapon Sight is ideal for a variety of challenging shooting situations including 3-gun competitions, hunting and law enforcement applications. The Wolfhound 3x24 Sight is a military-inspired, fast-paced optical device featuring longer than average eye relief and an advanced horseshoe dot reticle that’s ballistically matched to .223, 55 and 62 grain with holdovers from 300 to 900 yards. Its fixed power keeps the object in focus at 10 yards or more. Compact enough to not weigh down the rifle, but durable enough to shield from impact, the device includes a built-in aluminum Picatinny mount and rubber armor finish. Fully submergible, the Wolfhound 3x24 Sight is 100% waterproof, dust proof and shock proof.

Specifications:

Reticle, Type: HS-223

Reticle, Color: Red/Green

Reticle, Illuminated: Yes

Setting, Brightness: 5

Finish/Color: Matte Black

Magnification: 3x

Diameter, Objective Lens: 24 mm

Diameter, Eyepiece: 27 mm

Diameter, Exit Pupil: 8 mm

Eye Relief: 2.83 / 72 in/mm

Field of View: 10.48 m @100m

Field of View: 31.6 ft @100yd

Field of View: 6 Degree

Diopter Adjustment: +3 to -3

Parallax Setting: 100 yds

Windage Range of Adjustment: 160 MOA

Elevation Range of Adjustment: 160 MOA

Windage & Elevation, Lock: No

MOA Adjustment: 1/2 MOA

Maximum Recoil: 800 G's

Battery Type: CR2032

Battery Life: (High) 200 - (Low) 4000 Hours

Battery Voltage: 3 V

Sunshade: No

Nitrogen Purged: Yes

Shockproof: Yes

Fog Proof: Yes

IP Standard: IP68 (Submergible to 3m)

Body Material: Aluminum - 6061 / Rubber

Material, Lens: Glass

Lens Coating: Fully Multicoated AR Green

Mount Type: Picatinny

Operating Temp: -40 to 122 / -40 to 50 F/C

Length: 5.9 / 150 in/mm

Width: 2.8 / 72 in/mm

Height: 3 / 77 in/mm

Weight: 17.2 oz
