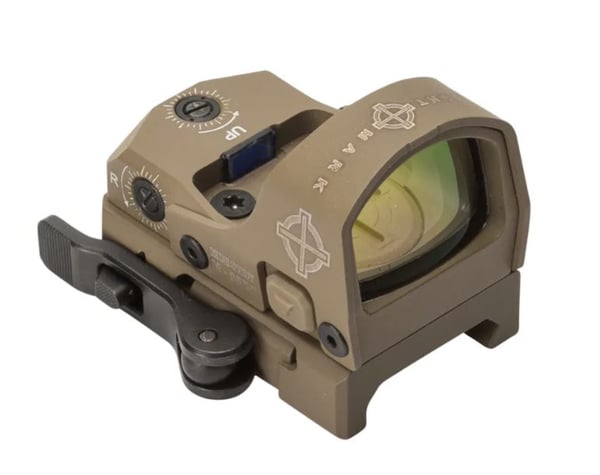

Inspired by law enforcement, the Sightmark Mini M-Spec LQD DE (SM26043-LQD) is an ideal optic for hunting, competition shooting and home defense. The Mini M-Spec is built from aluminum alloy with a steel protective shield making it one of the toughest compact optics out there. With 10 brightness settings, the Mini M-Spec reticle is visible in virtually any environment, from day time to extreme low light conditions. Mini M-Spec users benefit from the addition of ambidextrous switch controls to fit the needs of both left- and right-handed users. Mini M-Specs boast a coated and scratch resistant lens, 12hour auto shut-off and is IP67 rated waterproof, dustproof and shockproof. The optic comes complete with a locking quick-detach mount and AR riser mount perfect for ARs, AKs, shotguns and pistols.
Features
Very low power consumption
Locking quick detach mount
Windage and elevation click adkustments
10 reticle brightness levels
100% waterproof and dustproof
Ambidextrous digital switch brightness controls
Steel shield protects optics
Advanced parallax free lens design
Red reticle illumination
Rugged lightweight aluminum alloy housing
Scratch resistant lens coating
Specs
Reticle, Type 3 MOA
Reticle, Color Red
Setting, Brightness Off, 1-10
Magnification 1 x
Objective Lens 21 x 15 mm
Eye Relief Unlimited
Elevation Range of Adjustment 110 MOA
Windage Range of Adjustment 110 MOA
Adjustment Value 1 MOA
Finish/Color Dark Earth
Body Material 6061-T6 aluminum
Maximum Recoil .308
IP Rating (waterproof) IP67 - waterproof to 1m/3ft for 1 hour
Nitrogen Filled No
Shockproof yes, 3ft / .9m
Fog Proof No
Lens Coating AR Red
Mount Type Weaver / Picatinny
Battery Type CR1632
Battery Life 300 - 30,000 Hours
Battery Voltage, V 3
Operating Temperature -22 to 122 / -30 to 50 F / C
Length 2.2 / 56 with low mount in / mm
Width 1.85 / 47 with low mount in / mm
Height w/ low mount 1.34 / 34 in / mm
Weight w/ low mount 2.7 oz
Length w/ riser mount 2.2 / 56 in / mm
Width w/ riser mount 1.85 / 47 in / mm
Height w/ riser mount 2.2 / 56 in / mm
Weight w/ riser mount 3.4 oz
Parallax Setting 25yd - 8
