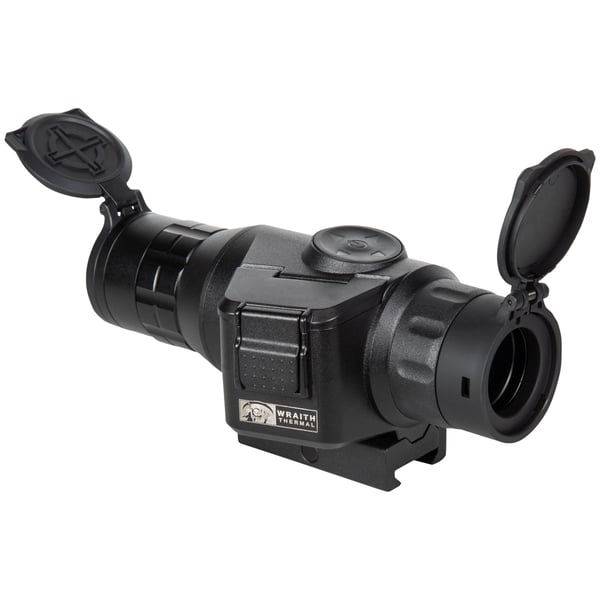

Sightmarks Wraith Mini no longer limited to digital day and night vision can now harness the power of digital infrared through its 384x288 resolution thermal sensor to provide users with crisp images. Features 256GB memory; camera w/audio recording; five thermal color palette modes; five weapon profiles; ten reticles; nine reticle colors; OLED display provides rich color and temperature operation while its five configurable weapon profiles allow it to hold multiple zeroes for different types of weapons, eliminating the need to re-zero the Wraith Mini Thermal every time its mounted on a different rifle. Includes flip-up covers, removeable Throw Lever, rubber eyecup, 2 x CR123A batteries and USB cable.
- Magnification: 2-16x
- Objective: 35mm
- Field of View: 13 degrees
- Battery: CR123A
- Weight: 19.30 oz
- Focus Range: 1400 yds
- Resolution: 384x288, 50Hz
- Battery Life: Up to 4 hrs
SPECIFICATIONS
- Sensor resolution, pixels 384×288
- Display type OLED
- Display Resolution 1024×768
- Built-In Video Recorder Availability Yes
- Maximum memory card supported, Gb 256
- Pixel Pitch (µm) 17
- Spectral Range (μm) 8-14
- NEDT (50 Hz, 300 K, F/1) (mK) 40
- Magnification 2x optical
- Aperture F1
- Lens diameter, mm 35
- Digital zoom 1-8x
- Field of View (degrees) 13
- Detection Range (yards/meters) 1400
- Eye Relief, in/mm 2.4 / 60
- Diopter adjustment, dptr. -3 to +3
- Power Supply, v 6
- Battery type 2x CR123A
- Battery life 3.5Hrs Video Mode/ 4.4Hrs Preview Mode
- External Power Supply 5V via USB
- Body Material Aluminum
- Accessory rail mount Picatinny
- Length, in/mm (with flip up caps) 6.653/169
- Width, in/mm 3.031/77
- Height, in/mm 2.913/74
- Weight, oz 19.3 oz
- Operating Temperature Range -20C – 50C
- Flip-up Covers (Front and Back)
- Removable Throw Lever
- Rubber Eyecup
- 2x CR123A
- 384×288 Thermal Resolution Enhanced algorithms create crisp image quality
- Lightweight and Compact Reduces overall firearm weight
- OLED Display Rich color and cold temperature operation
- 5 Color Palettes (White Hot, Black Hot, Green Hot, Rainbow, Magenta) Various modes for improved contrast for various scenarios/preferences
- 9 Reticle Colors Creates contrast between reticle and object for quicker aiming
- 10 Reticles Multiple reticles for preferences from minimalist design to complex for holdovers
- 5 Weapon Profiles Ability to hold multiple zeroes for different bullet grains or weapons
- Built-in Recording w/ Sound Relive or share the experience with sound
