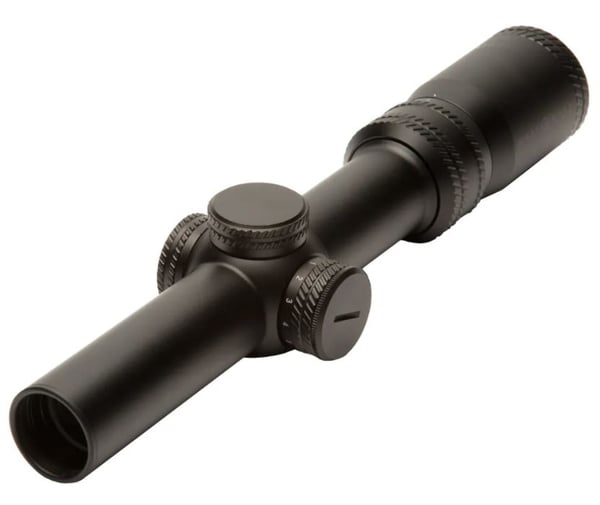

Offering a wide magnification range for close to mid-range shooting, the Citadel 1-6x24 combines impressive performance with a stealthy appearance. Designed with real shooters in mind, the Citadel 1-6x features a second focal plane BDC reticle calibrated for 55gr 5.56/.223, red reticle illumination for contrast against targets and low light shooting and fully multi-coated optics. Capped, low profile turrets protect zero and add to the Citadel’s no-nonsense, subdued appearance. A single-piece, 30mm tube and aircraft grade aluminum construction make the Citadel extremely durable and IP67 waterproof. Ideal for a variety of firearms, including ARs and bolt actions rifles, the Citadel 1-6x24 CR1 includes flip up lens caps, a handy throw lever and one CR2032 battery.
Features
BDC reticle calibrated for .223 55gr
6:1 zoom ratio
Capped
low-profile turrets
Second focal plane reticle
Red illuminated reticle
Single-piece 30mm tube
Shockproof
fogproof
waterproof
Specs
Reticle, Type CR1
Reticle Etched glass
Reticle, Color Red
Illuminated (yes/no) Yes
Reticle Brightness Setting 0 - 11
Magnification 1 - 6 x
Objective Lens 24 mm
Diameter, Eyepiece 40 / 1.6 (mm/in)
Diameter, Exit Pupil 3.85 - 8 mm
Eye Relief 2.9 - 3.5 / 73.66 - 88.9 (in/mm)
Field of view, m@100m 6 - 35.5
Field of view, ft@100yd 18 - 106.7
Diopter Adjustment +2 to -2
Diameter, Tube 30 / 1.18 (mm/in)
Parallax Setting 100 yds
Focal Plane 2nd
MOA Adjustment 1/2 MOA
Windage Range of Adjustment 120 MOA
Elevation Range of Adjustment 120 MOA
Windage & Elevation, Lock No
Maximum Recoil .338 Win
Battery Type CR2032
Battery life, hours 70 - 100 Hours
Battery Voltage, V 3 V
Sunshade No
Nitrogen Filled Yes
Shockproof Yes
Fog Proof Yes
IP Standard IP67 - waterproof and dustproof
Operating temperature, F/C 0 to 120 / -17 to 49 F/C
Body Material Aluminum
Finish/Color Matte black
Lens Coating Fully multi-coated
Length (in/mm) 10.7 / 272 (in/mm)
Width (in/mm) 2.2 / 58 (in/mm)
Height (in/mm) 1.7 / 42 (in/mm)
Weight, oz 16.2 oz.
