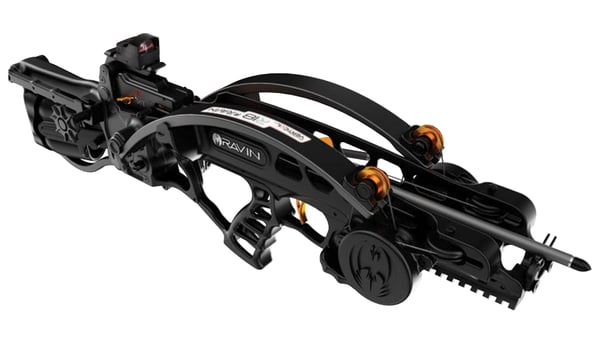

Utilizing the new proprietary VertiCoil Cam System, the R18 is the shortest Ravin ever created at just 18 inches in length. The VertiCoil Cam System rotates the ultra-small cams 720 degrees, coiling the strings and cables around the cam and cam axle allowing an axle-to-axle height of just 1.3 inches cocked or 4.1 inches when uncocked, with a static overall width of 4.75”. The R18 is a takedown style crossbow with limbs that expand vertically, shooting 330 feet per second. The R18 includes a detachable stock with an integrated removable quiver system, making the total length roughly 25 inches when fully in-tact. The unique 6-pound crossbow features the new Ravin 3-Dot Reflex Sight for easy target acquisition, and includes the Ravin built-in cocking mechanism, allowing for an easy draw.
SPECIFICATIONS
- 330 FPS
- Weight: 6 LBS
- Length:18” Without Stock, 25” With Stock
- Height Axle to Axle Cocked: 1.3”
- Height Axle to Axle Uncocked: 4.1”
- Overall Width: 4.75”
- Power-Stroke: 13”
- Kinetic Energy: 85 FT LBS
- Draw Force: 12 LBS
- VertiCoil Cam System
- Detachable Stock/Quiver
- Fully Assembled/Pre-Tuned
- 3 – 16” .003 350 Grain R18 Arrows with Field Points
- 1 – Removable Draw Handle
- Ravin 3 Dot Reflex Sight
- Built-In Cocking Mechanism
- Anti-Dry Fire/Auto Safety
- Built-in Sling Mounts
