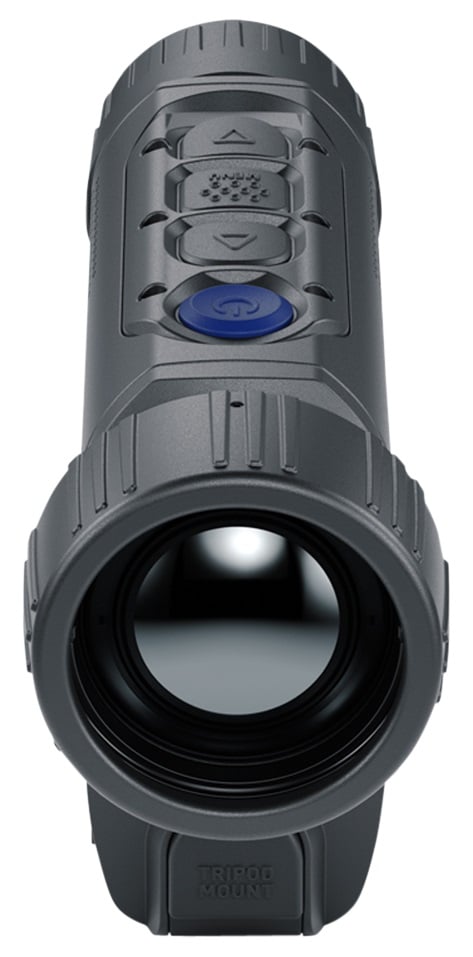

Axion 2 is designed for constant, hard use. A magnesium alloy housing is light and strong. The housing reliably protects the scope from shocks, drops, moisture, heat or cold. At the same effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation. The Axion 2 thermal monocular features a European Lynred sensors with a resolution of 384x288 pixels; Germanium F35/1.0 lens features high infrared transmission in the LWIR range; GHz connection offers better bandwidth range; built-in video recorder; digital zoom and 8 color palettes lets the user observe their field of view more effectively.
SPECIFICATIONS
Main
- Sensor 384x288 pix. @ 17 µm
- Objective lens F35/1.0
- Magnification, x 2 - 8 (x4 zoom)
- Field of view (HxV), degrees / m@100m 10.7?8 / 18.2
- Detection range, m 1300
Sensor
- Type uncooled
- Resolution, pixels 384x288
- Pixel pitch, µm 17
- NETD, mK <40
- Frame rate, Hz 50
Optics
- Objective lens F35/1.0
- Magnification, x 2 - 8 (x4 zoom)
- Field of view (HxV), degrees / m @ 100 m 10.7?8 / 18.2
- Eye relief, mm 14
Display
- Type AMOLED
- Resolution, pixels 640x400
Range Performance
- Detection range, m 1300
Video Recorder
- Video / photo resolution, pixel 528x400
- Video / photo format .mp4 / .jpg
- Built-in memory, GB 16
- Built-in memory capacity -
Wi-Fi
- Wireless Protocol Wi-Fi
- Wireless Standard IEEE 802.11 b/g/n/ac
- Frequency, GHz 2.4 / 5 GHz
Environmental Characteristics
- Degree of protection, IP code (IEC60529) IP?7
- Operating temperature range, °? -25 – +40
Connections and Compatibilities
- Mount, type 1/4"
- Remote control -
- Supported Application Stream Vision 2
Power Supply
- Output voltage, V 3.0 - 4.2
- Battery type APS 5 Li-ion Battery Pack
- Capacity, mAh 4900
- Operating time on battery pack (at t=22°C), h * 11
- External power supply, V 5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
- Body material Magnesium Alloy
- Dimensions, mm 152x50x74
- Weight, kg 0.3
Trade Data
- SKU (Model #) 77478
- Status production
