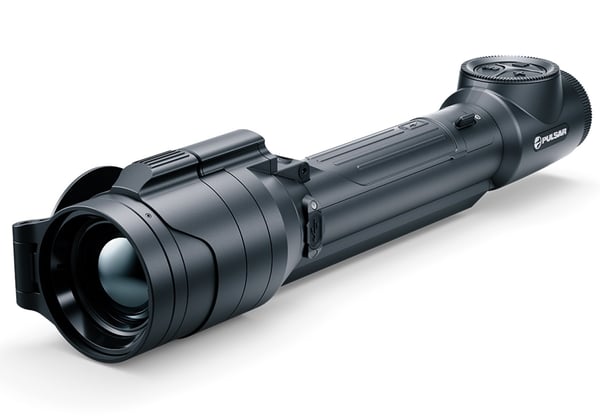

Ultimate detection efficiency is achieved with the fast lens of the Talion thermal imager in combination with the highly sensitive thermal sensor. Objective lens with internal focusing mechanism gives a clear and sharp image at any range. The Talion memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances. A mounting prism with multiple screw points to ensure flexibility and convenience when installing a Talion riflescope on various types of rifles and all Talion riflescope controls are placed on the top panel of the eyepiece to simplify access. he Talion comes equipped with the Weaver U mount. Compatible with the Stream Vision 2 app.
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
- Sensor 384x288 @ 17 µm (NETD <40 mK)
- Objective lens F38 F/1.2
- Magnification, x 2.5 − 10 (x4 zoom)
- Field of view (HxV), degrees / m@100m 9.8?7.3 / 17.2?13
- Detection range, m 1350
Sensor
- Type uncooled
- Resolution, pixels 384x288
- Pixel pitch, µm 17
- NETD, mK <40
- Frame rate, Hz 50
Optics
- Objective lens F38/1.2
- Magnification, x 2.5 - 10
- Field of view (HxV), degrees / m @ 100 m 9.8?7.3 / 17.2?13
- Eye relief, mm 50
Display
- Type AMOLED
- Resolution, pixels 1024?768
Range Performance
- Detection range, m 1350
Reticle
- Click value, H/V, mm at 100 m 17 / 17 (on minimum magnification)
- Click range, H/V, mm at 100 m 3400 / 3400
- Number of preloaded reticles 10+
Video Recorder
- Video / photo resolution, pixel 1024x768
- Video / photo format .mp4 / .jpg
- Built-in memory, GB 16
Wi-Fi
- Wireless Protocol Wi-Fi
- Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz 2.4 / 5
Environmental Characteristics
- Degree of protection, IP code (IEC60529) IPX7
- Operating temperature range, °? -25 – +50
Connections and Compatibilities
- Max. recoil power on rifled weapon (Eo), Joules 6000
- Shock resistance on the smooth-bore rifles, caliber 12
- Compatible mounts Weaver U Mount, Weaver USQD Mount, Weaver LQD Mount
- Remote control -
- Supported Application Stream Vision 2
Power Supply
- Output voltage, V 3.0 – 4.2
- Battery type APS5
- Capacity, mAh 4900
- Operating time on battery pack (at t=22°C), h * 9
- External power supply, V 5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
- Body material Metal
- Dimensions, mm 330x57x67
- Weight, kg 0.7
Trade Data
- SKU (Model #) 76561
- Status production
