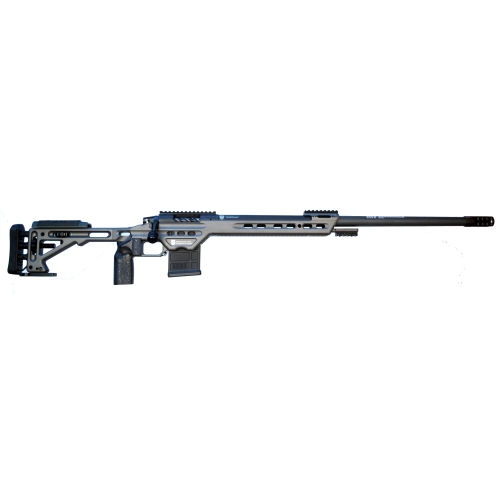

Masterpiece MPA 6.5 Creedmoor 26" M24 Polished RH
Action
- Curtis Custom Axiom
- 20 MOA Scope Rail
- Wire EDM Bolt Lug Raceways
- 3 Lug Head
- 60 Degree Bolt Throw
- Rollerball tipped cocking piece to reduce drag
- Quick Release Firing Pin Assembly Removal System (Tool Less)
- Recoil Lugs Ground to .0001″ Flatness and Parallelism
Bolt
- One Piece Design of the Bolt, Lugs and Handle
- CNC OD Ground on All critical features and dimensions
- Spiral Fluting on all Bolts
- All Bolts are Hand Lapped and Fitted to each individual action
- DLC Coated
- Mini 16 Extractor
Barrel
- Spencer/MPA Rifle Barrel
- 416RQ Stainless Steel
- Precision Gun Drilled, Reamed and Honed
- Pull Button Rifled
- Stress Relieved
- Hand Lapped
- Bore and Land Inspected on Video Borescope
- Sheffield Air Gage Inspection to .0001″ on Bore and Rifle Land Variation
- Chamber is indicated within .0001″ or less – to the bore of the rifle
Chassis – BA Competition Chassis
- Masterpiece Arms Tactical Chassis System
- Produced from 6061 Aluminum
- V-Bedding System with Additional clearance for Glass Bedding Action and Straight Section of Barrel
- MPA Buttstock with Adjustable Cheek Riser, Length of Pull
- Bag Rider
- Night Vision Bridge
- Lower mounted Picatinny Rail
- Cerakote Finish – Multiple Colors Available
- User Locate-able Barricade stop system compatible (Barricade Stop Not Included)
- Built In
- Built In Inclinometer leveling system
- Enhanced Vertical Grip
- Thumb Notch
- R.A.T. System Compatible
MPA Muzzle Brake
- MPA Premium Muzzle Brake
- Direct Thread Attachment, User index-able (5/8-24 TPI)
Trigger
- Trigger Tech Special
Accuracy Guarantee
- 3/8″ MOA (3 shot group)
Rifle Case
- Plano Basic Rifle Case
SPECIFICATIONS
- Caliber – 6.5mm Creedmoor
- Match Grade Chamber Design
- Action – Curtis Custom Axiom
- Barrel – Spencer/MPA Hand Lapped Barrel
- Action/Bolt Design – Remington 700 Type
- Chassis – MPA Tactical Aluminum Chassis (Either the Standard BA or the BA Comp Chassis)
- Muzzle Brake – MPA Premium Muzzle Brake
- Trigger – Trigger Tech Special
- User Located Barricade stop system compatible
- Magazine – AICS or AW Mag Compatible. (10 Round AICS Compatible Magazine Included)
- Built In Inclinometer leveling system
- Thumb Notch
- Night Vision Bridge
- R.A.T. System Compatible
