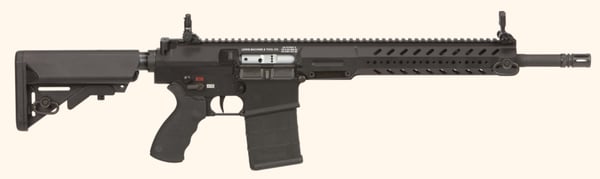

LM8MWS
S-A Bolt Carrier Group | 308MWS Lower Receiver |
16" 7.62×51 (.308) Chrome Lined 1:10" RH Twist Barrel
The LM8MWS represents one of the 3 basic LMT® .3o8 models alongside the CQBMWS and MLKMWS. This model is compatible will all MWS® barrels.
LMT® patented monolithic Modular Weapon System, MWS®. The only true monolithic rail platform, milled from a single solid piece of aerospace aluminum forging. It utilizes two locking bolts accessible from the side of the receiver to lock in the barrel extension. This patented technology engages the barrel extension for a full 360 degrees around the extension and makes the barrel removable within seconds with a return to zero of the same barrel. One receiver can utilize numerous barrels of varying length, material, and caliber.
The LM8MWS upper receiver has 19.25" of picatinny rail on the 12 o’clock position. The 3, 6 and 9 o’clock rails have locating lugs and screw holes. The locating lugs take the recoil of attached accessories while the screw holes hold the accessory or rail to the weapon.
MWS® barrels utilize a low profile gas block and straight gas tube. They possess proprietary coating and are cryogenically treated for long term durability.
The 308MWS lower receiver features LMT® ergonomic textured grip and SOPMOD stock, ambidextrous magazine catch and safety selector. As with all LMT® lower receivers, the extension tube is coated with dry film lubricant. All MWS® lowers are outfitted with a two-stage trigger group.
This weapon system comes complete with flip-up sights, tactical two point sling, 4 rail segments, 6 segmented grip panels, Magpul 20rd polymer magazine, torque wrench, and owner’s manual.
Caliber Options:
7.62×51 (.308): 13.5" | 16" | 20"
7.62×51 (.308) Lightweight: 13.5" | 16" (+$50)
Options for Flat Dark Earth grip and buttstock are available at no additional charge.
Options for Cerakote in Magpul Flat Dark Earth, Desert Sand, Olive Drab Green, Titanium Grey, and Burnt Bronze are available at an additional charge.
