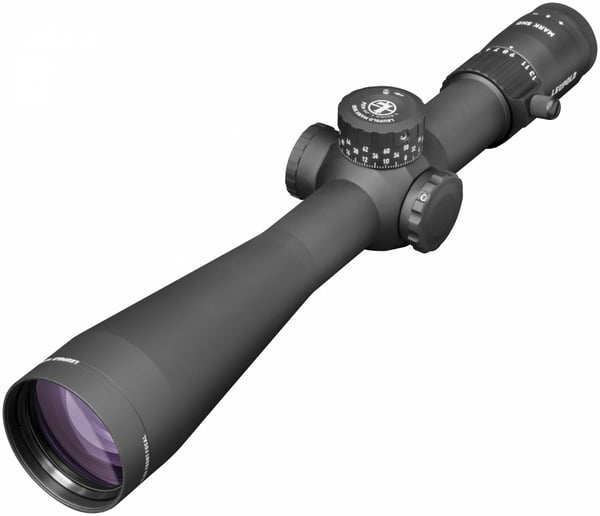

Pick up a Mark 5HD and you'll feel the difference: it's up to 20 ounces lighter than other scopes in its class. Get behind one and you'll see the difference, from the superior edge-to-edge clarity and extreme low-light performance, to the versatility of the Combat Competition Hunter reticle. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. Ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever so you can put accurate fire downrange faster.
Punisher Tested. Each scope design has to survive 5,000 impacts on the Punisher, Leupold's recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn't perform in any way during the tests, we make adjustments to the design and test it again.
Scratch Resistant Lenses. Extreme Military-Standard scratch resistance for added protection.
Fast-Focus Eyepiece. Brings the reticle into focus quickly with Fast-Focus eyepiece.
Ultra-Lightweight Design. Disperses recoil energy for unrivaled durability and performance with ultra-lightweight construction.
Zero Lock Dial. The new single turn CDS-ZL dial locks at zero only. A mere press of a button will allow the user to dial up the elevation as needed.
Waterproof & Fogproof. Absolute waterproof and fogproof integrity means it's ready to perform in the field, in all conditions.
Side Focus. Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.
Front Focal Plane (FFP). The reticle magnifies along with the image, so you can estimate range at all magnification settings. These reticles are ideal in tactical situations, yet also provide greater accuracy of range estimation for hunters and target shooters.
35mm Maintube. 35mm Maintube allows you to experience unparalleled windage and elevation adjustment travel.
Twilight Max HD Light Management System. See more in less light with Twilight Max Light
- Management System
- Adds up to 30 extra minutes of shooting light
- Eliminates 90% more glare-producing stray light than competitors
- Premium edge-to-edge lens clarity
M5C3 ZeroLock Adjustments. Throw Lever. Allows for near instant magnification changes.
5:1 Zoom Ratio. Versatile magnification range offers a wide field of view at low power and precise target identification at high power.
Dial Illumination Control. Positive clicks and clear numerical intensity level indicators: Mark Series product also include off positions between each illumination intensity setting to allow quick return to a preferred brightness.
Front Focal TMR (Mk) Reticle:
- Expands on existing Mil Dot reticle design
- Utilizes hash marks instead of dots for increased ranging and hold-over precision
- Provides aiming points for both wind and bullet drop compensation
- 1 MIL is approximately 3.6 inches at 100 yards
- Hash marks are spaced .5 MILs apart, transitioning to .2 MIL spacing on the outer edges
- Non-caliber specific
- Front focal reticles enables full function of the holdovers throughout the whole magnification range
- Mil based systems are the current military standard
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
- Weight: 30 oz
- Linear FOV (ft/100 yd) - Low: 20.5
- Linear FOV (ft/100 yd) - High: 4.2
- Length: 15.67"
- Linear FOV (m/100 m) - High: 6.82
- Linear FOV (m/100 m) - High: 1.4
- Length: 39.8 cm
- Eye Relief - Low: 3.58"
- Eye Relief - High: 3.82"
- Eye Relief - Low: 91 mm
- Eye Relief - High: 97 mm
- Weight: 850 g
- Elevation Adjustment Range: 120 MOA
- Elevation Adjustment Range: 34.9 MIL
- Windage Adjustment Range: 60 MOA
- Windage Adjustment Range: 17.5 MIL
- Exit Pupil - High 2.2 mm
