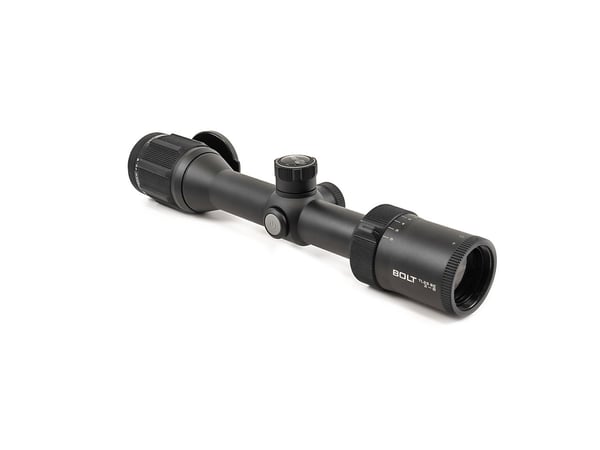

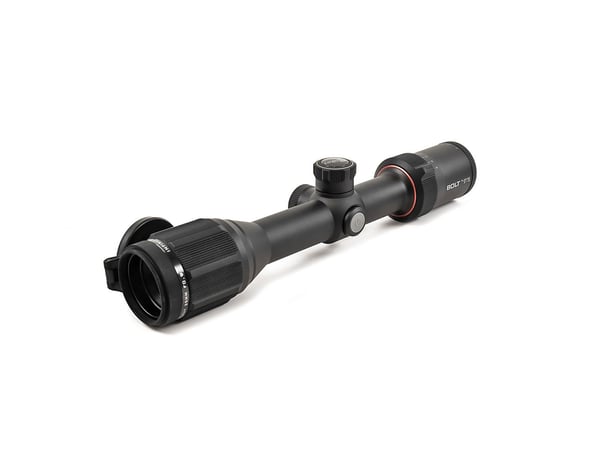

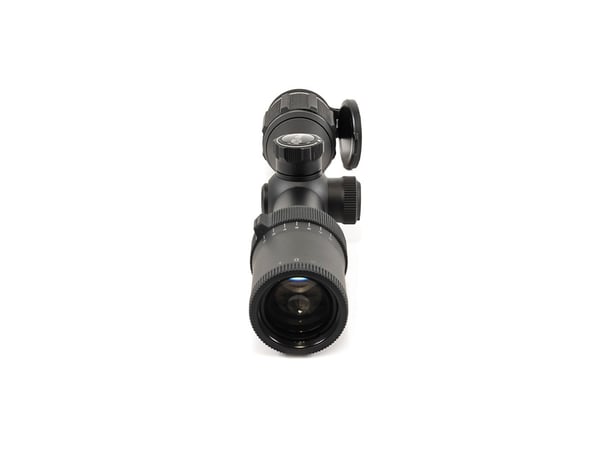

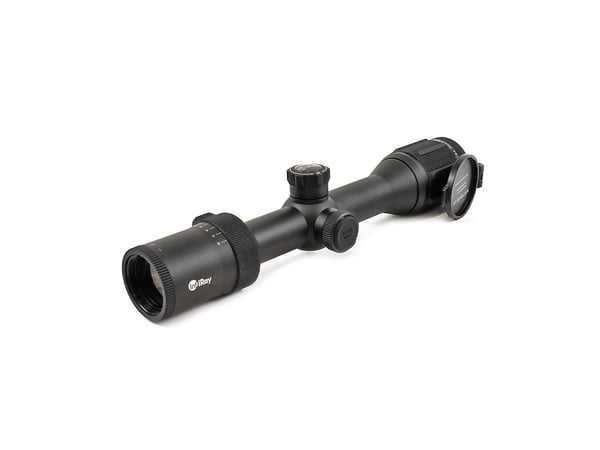

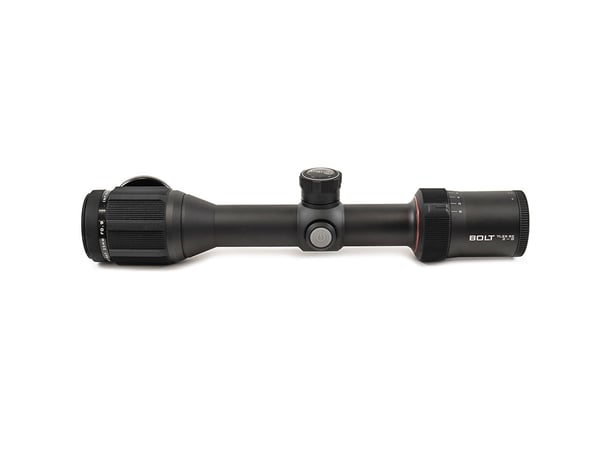

The InfiRay Outdoor BOLT SE is built on the success of previous BOLT models with a focus on simplicity and ease of use. Designed with users of traditional rifle scopes in mind, the BOLT SE offers a familiar profile and tactile controls. InfiRay’s industry-leading 12 µm 384x288 Micro II sensor, paired with a 1536x1080 AMOLED display provides exceptional clarity across all zoom levels and is adjusted via an intuitive zoom ring. Hunters can appreciate the ability to use common mounting systems or the included 30mm rings to mount on bolt-action rifles or other platforms. An internal battery with USB-C charging eliminates the need to change batteries in the field. Photo and video recording with 32GB of internal storage and mobile app connectivity with wireless streaming allows users to share their experiences with friends and family.
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
OPTIC
- Objective Focal Length 25mm
- Detection Range 1375 Yards
- Display Type AMOLED
- Eye Relief 50mm
- Digital Magnification 4X
- Diopter Range -5 - +4
- Vertical Angular Field of View 7.9°
- Horizontal Angular Field of View 10.5°
- Focusing Mechanism Manual Focus
- Objective F# 1.0
- Objective Diameter 25mm
- Objective Lens Material Germanium
- Display Resolution 1536×1080
- Optical Magnification 2X
FEATURES & PERFORMANCE
- Warranty 5 Years
- Startup Time Under 10 Seconds
- Rangefinder Bluetooth ILR-1200-1 LRF (Optional)
- Color Palettes White Hot, Black Hot, Red Hot, Color, Highlight
- Picture-in-Picture Yes
- Storage Capacity 32GB
- Connector Output Power/Data
- User-Updatable Firmware Yes
- Mobile App Yes
- Run Time 8+
- Power Source USB-C External, Built-In Battery Pack
- One-Shot Zero Yes
- Stand-by Mode Yes
- Reticle 6 (1 Dynamic, 5 Static)
- Connector Type USB-C
- Country of Manufacture China
- Wifi Yes
- Onboard Recording Yes
- Image Capture Yes
- External Power Source USB-C
ENVIORMENTAL SPEFICIATIONS
- Operating Temperature Range -4°F~122°F
- Recoil Rating 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection IP67
PHYSICAL
- Mounting Interface 30MM Rings (included)
- Housing Material Aluminum Alloy
- Weight 25.40
- Height 2.76
- Width 2.76
- Length 12.20
SENSOR SPECIFICATIONS
- Sensor Type InfiRay MICRO II
- Device Technology Thermal Imaging
- Sensor Pixel Size 12μm
- Sensor Frame Rate 50hz
- Sensor Resolution 384×288
- Thermal Sensitivity <25mk
- Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
