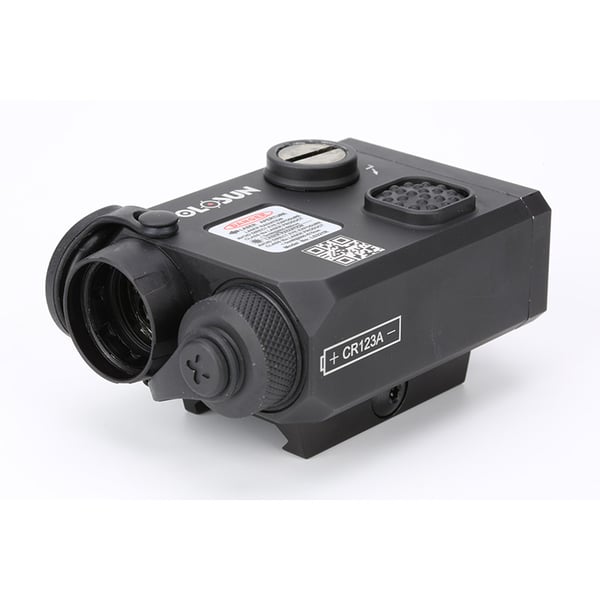

LS321 is a multi-laser device that integrates red laser, IR laser and IR illuminator. It has a mode selector to choose the different functions. The operator uses W&E adjuster to adjust the 3 laser beams at the same time. The IR illuminator-focusing knob is located at the rear of the unit for ease of adjustment for operator.
Coaxial visible laser, IR laser, IR illuminator
Rear side focusing knob
QD mount integrated
CNC machined housing
Remote cable switch included
OPTICAL DATA
Visible Laser Output Power (mw): 5
Green or Red Laser Class: IIIa
IR Laser / Illuminator Output Power (mw): 0.7
IR Laser / Illuminator Class: 2M
Green Laser Wavelngth (nm): 520
Red Laser Wavelength (nm): 635
IR Laser Wavelength (nm): 830
Flashlight Output Power (lum): N/A
ELECTRONIC DATA
Battery Type : CR123A
MECHANICAL DATA
Housing Material: 7075 T6 Aluminum
Surface Finish: MAO
Housing Color: Black
Laser Adjustment per Click: 0.5 MOA
Laser W&E Travel Range: ±60 MOA
Storage Temperature: -40F - 149F
Working Temperature: -40F - 124F
Submersion : 5M for 30 minutes
Vibration : Up to 1000G
PHYSICAL DATA
Dimension (in): 3.6x2.2x1.6
Weight (oz): 8.64
