Holosun Circle Dot/Solar Panel/QD Mount Reflex Sights

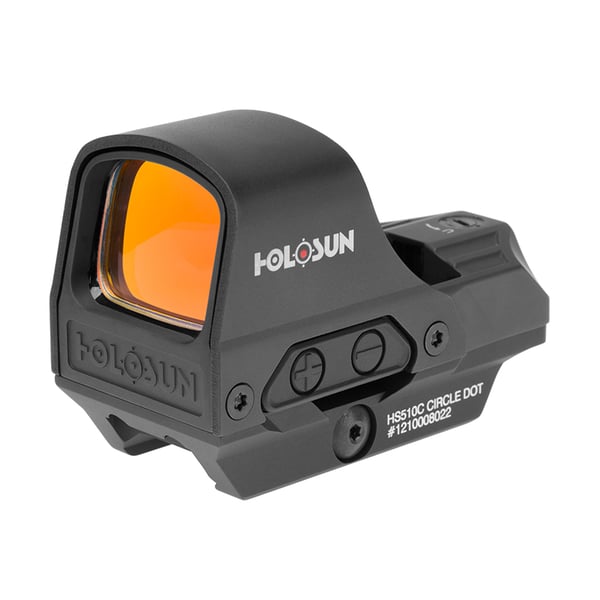

The HS510C Open Reflex Circle Dot Sight has an open frame for a wide sight picture. It is powered by solar cell under normal usage, and a back-up battery to supplement power requirements in low light conditions. The reticle can be switched between a 65 MOA circle with 2 MOA dot, a 2 MOA dot only, or a 65 MOA ring only at the push of a button. Better yet, the same LED projects both reticles, so no re-zeroing is necessary.
SPECIFICATIONS
- Parallax free with unlimited eye relief.
- New advanced technology LED allows up to 50,000 hours of operation on one CR2032 battery
- 2 MOA dot and a 65 MOA ring
- Dot only, Ring only, or Dot and Ring reticle combinations
- Unlimited field of view
- Titanium-alloyed, shock resistant hood
- Powered by both battery and solar
- QD integrated
OPTICAL DATA - Light Source: LED
- Reticle: 2MOA Dot & 65MOA Ring
- Parallax Free: Yes
- Unlimited Eye Relief : Yes
- Magnification: 1x
- Multi-Coatings : Yes
- Integrated Laser : No
ELECTRONIC DATA - Battery Type: CR2032
- Battery Life: Up to 50,000 Hours
- Brightness Setting: 10 Daylight & 2 NV Compatible
MECHANICAL DATA - Housing Material: 6061 Aluminum with Titanium Hood
- Surface Finish: MAO
- Housing Color: Black
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40F - 158F
- Working Temperature: -22F - 140F
- Submersion: IP67
- Vibration: Up to 1000G
PHYSICAL DATA - Window Size: 0.91in x 1.2in
- Dimension (in): 3.3 x 1.6 x 1.8
- Weight (oz): 8.3
- Central Height (in): 1.41
