Holosun Gold Circle Dot/Rotary Switch Micro Sights

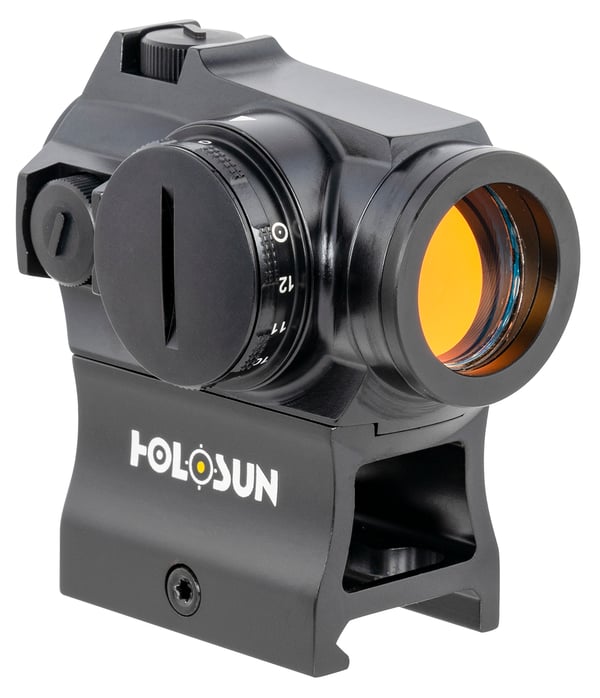

The HE503R-GD is a small compact red dot optic that features Holosun's new Rheostat Dial to adjust brightness settings while featuring the new Gold reticle! Employing our LED technology, The HE503R can achieve “constant on” battery life of up to 50,000 hours on medium setting. This optic features Holosun's proprietary Multi-reticle System (MRS) giving the user 2 reticles to choose from.
- New rotary control for faster operation and visual brightness indicator • Advanced technology LED allows up to 50,000 hours of operation on one CR2032 battery
- Unlimited field of view
- Parallax-free with unlimited eye relief
- Durable and reliable construction
- Low mount and 1/3 Co-witness mount included
SPECIFICATIONS
- Light Source: LED
- Reticle: 2 MOA Dot & 65 MOA Ring
- Parallax Free: Yes
- Unlimited Eye Relief: Yes
- Magnification: 1x
- Multi-Coatings : Yes
- Integrated Laser: No
ELECTRONIC DATA - Battery Type: CR2032
- Battery Life: Up to 50,000 Hours
- Brightness Setting: 10 Daylight & 2 NV Compatible
MECHANICAL DATA - Housing Material: Aluminum
- Surface Finish: MAO
- Housing Color: Black
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40F - 158F
- Working Temperature: -22F - 140F
- Submersion: IP67
- Vibration: Up to 1000G
PHYSICAL DATA - Window Size: 20mm Diameter
- Dimension (in): 2.75x1.43x1.62
- Weight (oz): 3.74
- Central Height (in) : 1.6
