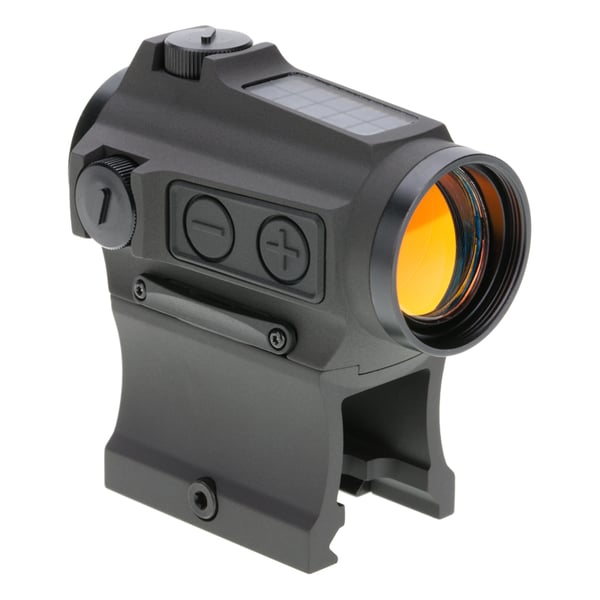

Holosun HE503CU-GR Elite Green Circle Dot / Solar Panel Micro Sight
The HE503CU-GR Elite is a new micro green dot optic equipped with a 65 MOA circle dot reticle with the option of switching to a 2MOA dot only. The highly efficient light emitting diodes and solar panels allow Holosun solar optics to run without a battery in many lighting conditions. Additionally, the back-up battery lasts up to 5-years on the dot and up to 2 years on the circle dot. The “U” signifies a housing design that shrouds the windage and elevation turrets on two sides.
FEATURES:
- Parallax free with unlimited eye relief.
- New advanced Green technology LED allows up to 50,000 hours of operation on one CR2032 battery
- 2 MOA dot and a 65 MOA ring
- Unlimited field of view
- Parallax-free with unlimited eye relief
- Powered by both battery and solar
- Low mount and 1/3 Co-witness mount included
SPECIFICATIONS:
OPTICAL DATA
- Light Source: LED
- Reticle: 2MOA Dot & 65MOA Ring
- Parallax Free: Yes
- Unlimited Eye Relief: Yes
- Magnification: 1x
- Multi-Coatings: Yes
- Integrated Laser: No
ELECTRONIC DATA
- Battery Type: CR2032
- Battery Life: Up to 50,000 Hours
- Brightness Setting: 10 Daylight & 2 NV Compatible
MECHANICAL DATA
- Housing Material: 6061 Aluminum
- Surface Finish: MAO
- Housing Color: Black
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40F - 158F
- Working Temperature: -22F - 140F
- Submersion: IP67
- Vibration: Up to 1000G
PHYSICAL DATA
- Window Size: 20mm Diameter
- Dimension (in): 2.44 x 1.18 x 1.45
- Weight (oz): 6.3
- Central Height (in): 1.63
