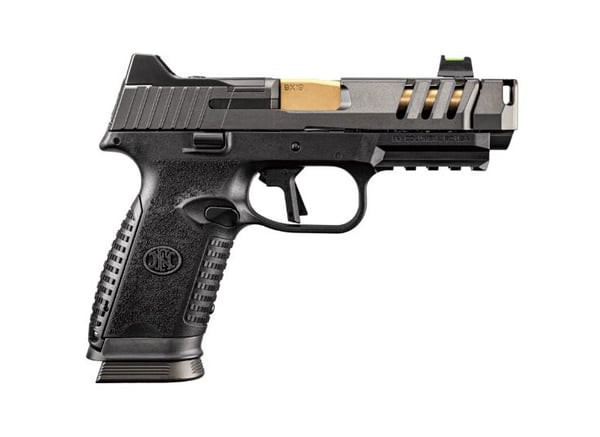

Demonstrating the modularity of the FN 509® platform, the FN 509 CC Edge™ XL combines the best of the FN 509® Edge series for a high-performance pistol designed for speed, accuracy and control. Featuring the CC Edge slide with quick-detach compensator designed to reduce muzzle rise up to 25-percent and the full-sized LS Edge frame with improved texturing for secure grip, the FN 509 CC Edge™ XL delivers an extremely flat shooting experience with significant recoil reduction for faster sight picture recovery, improving speed to target, accuracy, and overall control of the pistol.
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
- CALIBER: 9mm
- OPERATION: Double-action, striker-fired
- MAG CAPACITY: 17
- WEIGHT: 29 oz
- BARREL LENGTH: 4.2"
- OVERALL LENGTH: 7.5"
- TWIST RATE: 1:10" RH
- HEIGHT: 5.9"
- WIDTH: 1.35"
- TRIGGER PULL: 4.5-6.7 lb.
- SIGHT RADIUS: 5.41"
PRIMARY FEATURES
Quick-detach FN Compensator that reduces muzzle rise up to 25 percent
Full-sized frame for improved controllability and shootability
Integrated magazine well and 17 round magazine with weighted baseplate for improved reload speeds
Flat-faced trigger that breaks cleanly at 90-degrees; approx. 4.5 – 6.7 lbs. pull
Precision flat-faced trigger
COMPENSATOR
Proprietary quick-detach (QD) compensator design proprietary non-threaded QD barrel
Toolless installation and removal for cleaning and maintenance
Reduces muzzle rise up to 25 percent
BARREL
4.2-inch cold hammer-forged, stainless-steel barrel with proprietary, non-threaded mounting lugs for FN Compensator
Gold titanium nitride PVD finish provides increased lubricity, hardness and long-wearing performance
Recessed target crown that protects rifling
SLIDE
Fiber optic front, all-black rear, co-witness height
Slide machined from stainless steel with graphite PVD finish
Lightening cuts that increase slide cycling for faster follow-up shots
FRAME
Full-sized frame that enables actuation of controls without breaking grip
Ambidextrous slide stop
Righthand-only magazine release
Flat-faced precision trigger that breaks cleanly at 90 degrees
Integrated, flared magazine well enables faster reloads
SHIPS WITH
Ballistic case
Four MRD Mounting Plates
Two interchangeable backstraps
Three 17-rd magazines
Owner’s manual
Locking device
