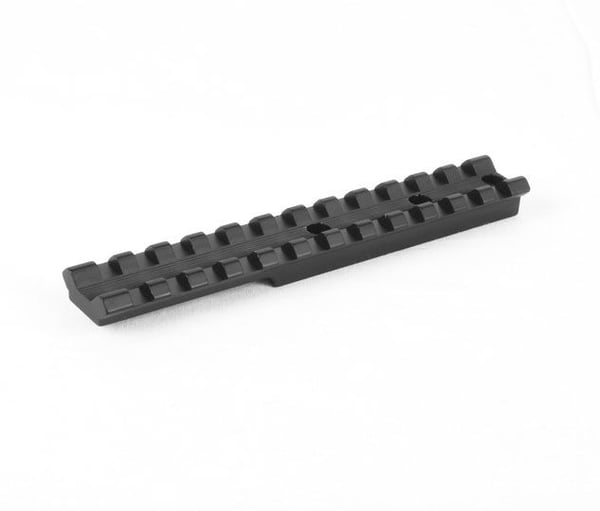

Evolution Gun Works Henry Single Shot (H015) Picatinny Rail 0 MOA
The rear sight must be removed on all Henry models in order to provide clearance for the base. This is a simple operation as the sight is pressed into a standard 3/8" dovetail.
*The center spread is the distance between the two middle holes, center to center, on your receiver.
This base sits at approximately 0.4” high.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount, weighing in at 2-3oz on average. Also, in many cases, it will not obstruct usage of factory iron sights. EGW's one piece scope mounts are the obvious choice for hunters and tactical shooters alike.
This mount is a Picatinny-style base and compatible with Picatinny or Weaver scope rings.
When zeroing your rifle with a 20 MOA mount, zeroing at 200 yards is recommended.
These are machined these in EGW's shop using one of their USA-made Fadal machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
Installation: EGW recommends 20 inch lbs of torque and a drip of blue loctite
SPECIFICATIONS
- Machined From: Domestic 6061 T6 Extruded Aluminum
- Finish: Matte Black Only
- Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
- Hole 1 to 2: 1.296"
- Hole 2 to 3: 1.0"
- Overall Length of Mount: 5.094"
- This mount fits:Henry Single Shot H015NEF Topper (confirm hole spacing)
