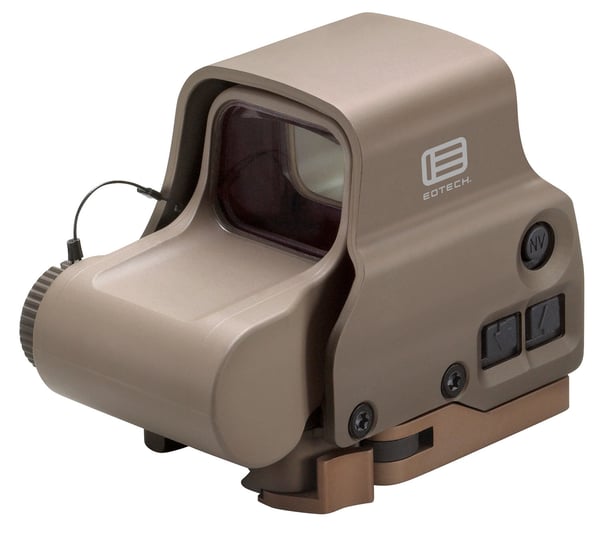

To meet the stringent requirements set and demanded by our elite fighting forces, L-3 EOTech has developed the SU-231/PEQ (Model 553), modeled after the ever popular, battle proven HWS design. The SU-231/PEQ (Model 553) incorporates many additional features required within the SOPMOD Block 2 program. This combat sight has been standardized as the weapon sight of choice by America's warrior elite, the US Special Operations Command. Eotech has done it again by making the best even better.
- Single transverse 123 battery to reduce sight length
- Shortened base only requires at most 2 3/4 inch of rail space
- Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
- Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
- Average battery life at brightness level 12 is roughly 500-600 hours
- Side buttons, NV compatible with a single quick detach throw lever
SPECIFICATIONS
- Finish Hard Coating
- Fabric/Material Aluminum
- Magnification 1 x
- Objective Lens Diameter 0.85 in
- Objective Window Size .85 in
- Reticle 1 Dot
- Illumination Type Holographic
- Illumination Color Red
- Brightness Settings 30
- Eye Relief Unlimited
- Adjustment Type MOA
- Adjustment Click Value 0.5 MOA
- Field of View, Linear 30 yds at 4 in
- Lens Material Front Window 1/8in solid glass Rear Window 3/16in Laminate
- Optical Coating Anti-Reflection coating on external surface
- Attachment/Mount Type MIL-STD 1913, Weaver
- Battery Type CR123A
- Battery Quantity 1
- Battery Life 1000 hours
- Operating Temperature -4 - 122 Fahrenheit
- Water Resistance Level Submersible
- Water Resistant Mark 10 m, 33 ft
- Fogproof Yes
- Length 3.5 in
- Width 2.4 in
- Height 2.8 in
- Weight 11.2 oz
- Package Type Polymer hard case
- Magnification Type Fixed
- Lens Finish Fog resistant internal optic
- Brightness Index 20 daylight settings
- Switch Type Button
- Fit both 1in Weaver and MIL-STD-1913 rail
