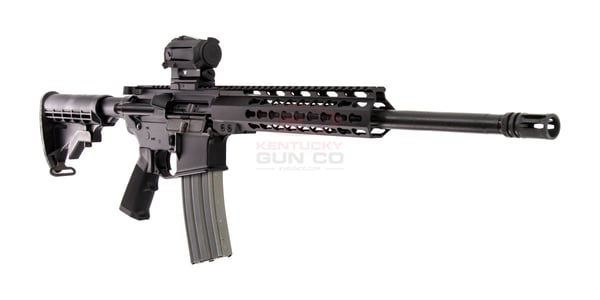

DEL-TON ECHO 316H
Specifications
Barrel:
Chrome Moly Vanadium
16" Length, 1x9 Twist
Manganese Phosphated
Phosphated Gas Block
Threaded Muzzle, A2 Flash Hider
Heavy Profile
M4 Feed Ramps
Chamber:
5.56 X 45 mm Nato
Bolt & Carrier:
Phosphated 8620 Steel Carrier Assembly
HPT/MPI Tested Carpenter 158 Bolt
Heat Treated and Plated
Mil-Spec
Chrome Lined Carrier Interior
Carrier Key - chrome lined, attached with Grade 8 Screws
Properly Staked & Sealed Gas Key
Handguards:
9" Aluminum KeyMod
Upper Receiver:
Forged 7075 T6 Aluminum
M4 Feed Ramps Flat Top w/ White T-marks
Hard Coat Anodized
Bore’s Surface is coated with dry film lube, over anodized surface
Mil-Spec
Ejection Port Cover and Round Forward Assist
Right Hand Ejection
Lower Receiver:
Forged 7075 T6 Aluminum
Hard Coat Anodized
Mil-Spec
Aluminum Triggerguard
Semi-Auto
Aluminum Mag Catch Button
A2 Pistol Grip
Buttstock:
M4 5 Position
Mil-Spec Sized Tube
H-Buffer
Weight:
6.5 lbs Empty
Length:
36.375" Fully Extended
32.625 Collapsed
Accessories:
30rd Magazine
Gun Lock
VORTEX SPARC AR RED DOT (2 MOA BRIGHT)
Simple—Fast—Effective—Point and Shoot. When you boil it down, those are the advantages of a red dot sight. And that’s what the SPARC AR delivers - all in a durable, lightweight, compact, and ultra-clean package. Digital rear-facing controls for power and dot brightness offer quick access and are viewable from the shooting position. 2 MOA dot diameter promotes precise point of aim. Automatically returns to last dot intensity used when powered up.
Unlimited eye relief and parallax free, the SPARC AR gets shooters on target fast. Waterproof, fogproof and shockproof for ultimate durability. Unit automatically shuts off after 12 hours to prevent accidental battery rundown and operates using a common AAA battery. Duty rifle - home defense—recreation, the SPARC AR is built to handle all your red dot needs.
FEATURES:
OPTICAL FEATURES:
Fully Multi-Coated - Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.
Bright Red Dot - Display is highly visible in daylight.
Brightness Settings - Provides 10 variable illumination settings—the lowest two settings are night-vision compatible.
CONVENIENCE FEATURES:
Multi-Height Mount System - Includes a spacer shim that can be utilized to provide two different mounting heights: lower 1/3 co-witness (40 mm) & absolute co-witness (37 mm).
Unlimited Eye Relief - Non-critical eye relief for rapid target acquisition.
Battery Life - 12-hour auto-shutdown feature maximizes battery life. Typical battery life is 300 hours at maximum brightness and 5,000 hours at minimum brightness setting.
CONSTRUCTION FEATURES
Nitrogen Gas - Nitrogen gas purging with o-rings-seals delivers fogproof, waterproof performance.
Single-Piece Chassis - Compact and lightweight.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof - Rugged construction withstands recoil and impact.
Hard Anodized Finish - Highly durable low-glare matte finish.
Operating Temperature - Rated from -4 degrees to +158 degrees Fahrenheit.
SPECIFICATIONS:
Magnification: 1 x
Objective Lens Diameter: 22 mm
Eye Relief: Unlimited
Adjustment Graduation: 1 MOA
Max Elevation Adjustment: 90 MOA
Max Windage Adjustment: 90 MOA
Parallax Setting: Parallax Free
Length: 2.9 inches
Weight: 7.5 oz
