DANIEL DEFENSE M4A1 Upper Rec Group 5.56

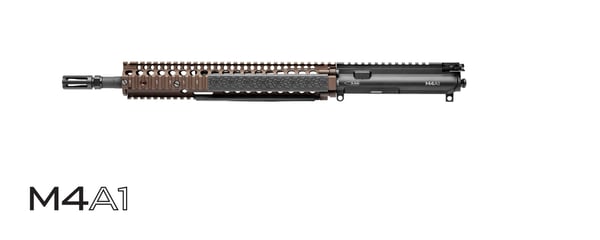

M4A1 UPPER RECEIVER GROUP

The Daniel Defense M4A1 Upper Receiver Group features the M4A1 Rail Interface System (RIS II), which has been in use by US Special Operations Command (SOCOM) for the SOPMOD II Weapons System since 2005. This two-piece, free-floating rail system allows the mounting of devices like a M203 grenade launcher without influencing the barrels harmonics, eliminating problems like wandering point of impact that plagued other mounting designs. The two-piece design also allows for partial disassembly of the rail to aid in cleaning around barrel without completely removing the entire rail system. The weight of anything attached to the RISII rail system is fully supported by a sturdy bolt-up system, using 6 grade 8 bolts, leaving the barrel completely free floating for best possible accuracy and dependability. The M4A1 features a 14.5” Cold Hammer Forged M4 Profile barrel with a permanently attached Daniel Defense Improved Flash Suppressor to meet the NFA required 16” length. Daniel Defense complete upper receiver groups come complete with bolt carrier group and charging handle.

MATERIALS & CONSTRUCTION

UPPER RECEIVER: Mil-Spec with Indexing Marks and M4 Feed Ramps. CNC Machined of 7075-T6 Aluminum, Type III Hard Coat Anodized
BARREL: Chrome Moly Vanadium Steel, Cold Hammer Forged, 1:7 twist, 14.5" M4 Profile, Chrome Lined, and Mil-Spec Heavy Phosphate Coated
GAS SYSTEM: Pinned Low Profile Gas Block CNC Machined of 4140 hardened steel and Mil-Spec Heavy Phosphate Coating, Carbine length, Direct Impingement
MUZZLE DEVICE: Daniel Defense Extended Flash Suppressor, 17-4 PH Stainless Steel, Salt Bath Nitride Finished, pinned and welded to Barrel
BOLT CARRIER GROUP: M16 Profile, Chrome Lined, Properly Staked Gas Key
SIGHTS: Sold Separately
HANDGUARD: Daniel Defense M4A1 Rail Interface System (RIS) II, CNC Machined of 6061-T6 Aluminum, Type III Hard Coat Anodized FDE
RAIL PANELS: Daniel Defense Rail Panels made from Santoprene, heat resistant to 300° F.
Made in the USA!

ADDITIONAL INFORMATION

Restricted Shipping No
Caliber 5.56mm NATO
Gas System Carbine
Barrel Length 14.5"
Profile M4
Product Weight 4.56 lbs
