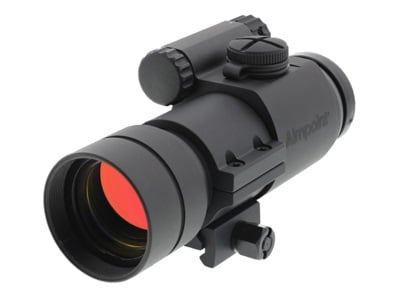

AIMPOINT COMPC3 2MOA Acet

GENERAL DATA
Article number: 11421
Technology: ACET (Advanced Circuit Efficiency Technology)
Working principle: Reflex collimator sight - red dot sight

OPTICAL DATA
Lightsource: LED (Light Emitting Diode) totally eye-safe
Lightsource wavelength: 650 nm red light
Red dot size in MOA (minute of angle):* 2
Parallax: Absence of parallax - No centering required
Eye relief: Unlimited
Night vision compatibility: No
Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
Magnification: No magnification (1X)

ELECTRONIC DATA
Battery: One 3V Lithium battery, type 2L76 or DL1/3N
Battery life in hours:** 50,000 (over 5 years of continuous use)
Dot intensity adjustment: Manual rotary switch
Daylight (DL) settings: 1 Off & 9 DL

MECHANICAL DATA
Material housing: High strength aluminum
Surface finish: Anodized, semi-matte
Color housing: Black
Adjustment 1 click: 13mm at 100m, (1/2” at 100yds)
Mounting methods: 1 ring, ø 30mm

ENVIROMENTAL DATA
Temperature range: -30° - +60°C, (-20° - +140°F)
Water resistance - submersible to: Fully waterproof
Radioactive components used: None

DIMENSIONS
Length: 120m, (4.7”)
Maximum ring width: 30mm, (1.18”)
Objective diameter: 38mm, (1.5”)
Tube diameter: 30mm, (1.18”)
Weight sight only: 200g, (7.1oz)

* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards.

** at room temperature & at setting 7 out of 10.

Specifications are subject to change without notice.
