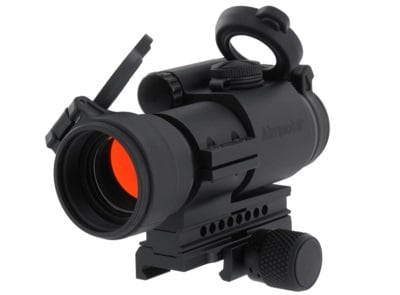

AIMPOINT Patrol Rifle Optic (Pro)

GENERAL DATA
Article number: 12841
Technology: ACET (Advanced Circuit Efficiency Technology)
Working principle: Reflex collimator sight - red dot sight


OPTICAL DATA
Lightsource: LED (Light Emitting Diode) totally eye-safe
Lightsource wavelength: 650 nm red light
Red dot size in MOA (minute of angle):* 2
Parallax: Absence of parallax -No centering required
Eye relief: Unlimited
Night vision compatibility: Yes
Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
Magnification: No magnification (1X)

ELECTRONIC DATA
Battery: One 3V Lithium battery, type 2L76 or DL1/3N
Battery life in hours: ** 30,000 (over 3 years of continuous use)
Dot intensity adjustment: Manual rotary switch
Daylight (DL) settings: 6 DL of which one extra bright
NVD settings: 4 NVD

MECHANICAL DATA
Material housing: High strength aluminum
Surface finish: Hard anodized, matte
Color housing: Black
Adjustment 1 click: 13mm at 100m, (1/2” at 100yds)
Mounting methods: QRP2 mount for M1913 standard Picatinny rail, and spacer for AR15/M4 carbine application

ENVIROMENTAL DATA
Temperature range: -45° - +71° C, (50°- +160° F)
Water resistance - submersible to: 45m, (150ft)
Radioactive components used: None

DIMENSIONS
Length: 130mm, (5.1”)
Width/height sight only: 55 x 55mm, (2.2” x 2.2”)
Maximum ring width: 30mm, (1.18”)
Objective diameter: 38mm, (1.5”)
Tube diameter: 30mm, (1.18”)
Weight sight only: 220g, (7.8oz)****
Weight sight with integrated mount: 11.6 oz including mount and spacer

* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards.

** at room temperature & at setting 7 out of 10.

Specifications are subject to change without notice.
