AIMPOINT COMPM4S with QRP2 Mount

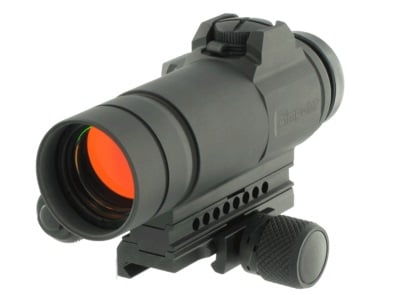

Aimpoint® CompM4s

The Aimpoint® CompM4s sight, with low battery compartment, belongs to the CompM4 series sights which are the finest sights Aimpoint has ever produced. Improvements include improved energy efficiency that provides up to 8 years of continuous use from a single AA battery!

The first Aimpoint Comp sight came out in 1995 and today there are more than 1 million sights from the Comp series in use worldwide. All Comp sights are soldier-tested and combat-proven, in other words they are extremely robust high quality products.

The Aimpoint® CompM4 series of sights are the toughest sights that Aimpoint has ever produced and they are the standard infantry soldier sight in many NATO countries. These optics are extremely rugged and operate continuously for up to 8 years using a single AA battery. The competition is not even close. The Aimpoint CompM4s is the latest version of the U.S. Army´s M68CCO (Close-Combat Optic), continuing a legacy that Aimpoint has maintained since 1997.

The CompM4 has a top-mounted battery compartment while the CompM4s has a low battery compartment – this is the only difference between the sights.

GENERAL DATA
Article number: 12172
Technology: ACET (Advanced Circuit Efficiency Technology)
Working principle: Reflex collimator sight - red dot sight

OPTICAL DATA
Lightsource: LED (Light Emitting Diode) totally eye-safe
Lightsource wavelength: 650 nm red light
Red dot size in MOA (minute of angle):* 2
Parallax: Absence of parallax - No centering required
Eye relief: Unlimited
Night vision compatibility: Yes
Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
Magnification: No magnification (1X)

ELECTRONIC DATA
Battery: One AA battery, accepts 1.5-5V - low battery compartment
Battery life in hours: ** 80,000 (over 8 years of continuous use)
Battery life in hours **at NVD settings: *** 500,000
Dot intensity adjustment: Manual rotary switch - low switch location
Daylight (DL) settings: 9 DL of which one extra bright
NVD settings: 7 NVD

MECHANICAL DATA
Material housing: Extruded high strength aluminum
Surface finish: Hard anodized, matte
Color housing: Black
Adjustment 1 click: 16mm at 100m, (1/2” at 80yds)
Mounting methods: Integrated QRP2 - (Quick release)

ENVIROMENTAL DATA
Temperature range: -45° - +71° C, (50°- +160° F)
Water resistance - submersible to: 45m, (150ft)
Radioactive components used: None

DIMENSIONS
Length: 120mm, (4.7”)
Width/height sight only: 53 x 60mm, (2.1” x 2.4”)
Width/height including mount: 72 x 72mm, (2.8” x 2.8”)
Weight sight only: 265g, (9.3oz)
Weight sight with integrated mount: 335g, (11.8oz)

* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards

** at room temperature & at setting 12 out of 16 - (Figures valid for a good quality 1.5V alkaline AA battery)

*** Night Vision Device

Specifications are subject to change without notice
