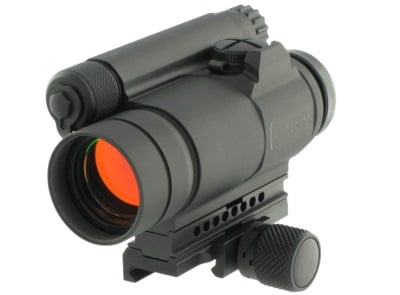

AIMPOINT COMPM4 with QRP2 Mount

GENERAL DATA
Article number: 11972
Technology: ACET (Advanced Circuit Efficiency Technology)
Working principle: Reflex collimator sight - red dot sight

OPTICAL DATA
Lightsource: LED (Light Emitting Diode) totally eye-safe
Lightsource wavelength: 650 nm red light
Red dot size in MOA (minute of angle):* 2
Parallax: Absence of parallax - No centering required
Eye relief: Unlimited
Night vision compatibility: Yes
Anti-reflex coating all surfaces & multi-layer coating objective lens: Yes
Magnification: No magnification (1X)

ELECTRONIC DATA
Battery: One AA battery, accepts 1.5-5V - high battery compartment
Battery life in hours: ** 80,000 (over 8 years of continuous use)
Battery life in hours **at NVD settings: *** 500,000
Dot intensity adjustment: Manual rotary switch - high switch location
Daylight (DL) settings: 9 DL of which one extra bright
NVD settings: 7 NVD

MECHANICAL DATA
Material housing: Extruded high strength aluminum
Surface finish: Hard anodized, matte
Color housing: Black
Adjustment 1 click: 16mm at 100m, (1/2” at 80yds)
Mounting methods: Integrated QRP2 - (Quick release)

ENVIROMENTAL DATA
Temperature range: -45° - +71° C, (50°- +160° F)
Water resistance - submersible to: 45m, (150ft)
Radioactive components used: None

DIMENSIONS
Length: 120mm, (4.7”)
Width/height sight only: 53 x 60mm, (2.1” x 2.4”)
Width/height including mount: 72 x 72mm, (2.8” x 2.8”)
Weight sight only: 265g, (9.3oz)
Weight sight with integrated mount: 335g, (11.8oz)

* 1 MOA ˜ 30 mm at 100 meters ˜ 1” at 100 yards

** at room temperature & at setting 12 out of 16 - (Figures valid for a good quality 1.5V) alkaline AA battery)

*** Night Vision Device

Specifications are subject to change without notice
