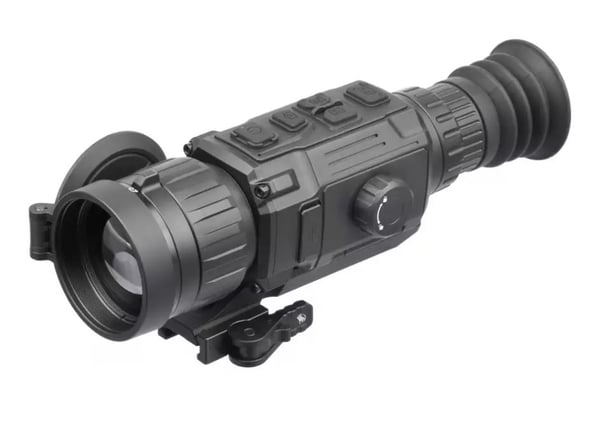

The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 25mm lens or a 50mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!
With the Clarion 384, Night Hunters can now use the benefits of a 25mm lens with a base magnification of 2x and a wider FOV (10.5° × 7.9° or 53 ft @ 100 yards) then quickly switch to a 50mm lens with a base magnification of 4.5x and a narrower FOV (5.3° × 4.0° or 27 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!
This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!
This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.
Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 384x288 12-micron thermal sensor, removable rechargeable battery, up to 11 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.
- Dual focus objective lens - 25mm/50mm
- 12μm thermal detector
- Superior sub-20 milikelvin thermal sensitivity
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 11 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
Shop with KYGUNCO for the best selection, competitive pricing, and exceptional customer service. Experience the difference that comes with buying from a trusted outdoor retailer with over 20 years of experience in the industry.
- Dimensions 241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in)
- Palettes Black hot, White hot, Red hot, Fusion
- Exit Pupil Diameter 6 mm
- Reticle 10 types, 4 colors, on/off
- Boresight Adjustment Digital Controlled
- Distance Measurement Yes (Stadiametric)
- Scene Mode Cold, Warm
- Picture In Picture Mode (PIP) Yes
- Video Recording Yes
- Magnification 2× - 16× / 4.5× - 36×
- Detector type 12μm VOx Uncooled Focal Plane Array
- FFC (Flat Field Correction) Yes
- Standby Mode Yes
- Refresh rate 50 Hz
- Resolution 384 × 288
- Detection Range (6' object) 1200 m/yd / 2600 m/yd
- Lens system 25 mm; F0.8 / 50 mm; F1.0
- NETD Less than 20 mK (25°C, F# = 1.0)
- Protection level IP67
- Field of view (H × X) 10.5° × 7.9° / 5.3° × 4.0°
- Digital zoom 1×, 2×, 4×, 8×
- Diopter adjustment range -5 to +5 diopters
- Focusing range 4 m to infinity / 10 m to infinity
- Hot Track Yes
- Eye relief 45 mm
- Display 0.39-inch, OLED, 1024×768
- Storage Built-in EMMC (16 GB)
- Capture Snapshot Yes
- Battery Type Replaceable and Rechargeable Li-ion Battery
- Wi-Fi Yes
- Battery Life (Operating) ≥ 11 h (25°C, hotspot off)
- External power supply 5 VDC, 2 A, USB Type-C
- Weight 0.75 kg (1.65 lb)
- Package Includes Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
