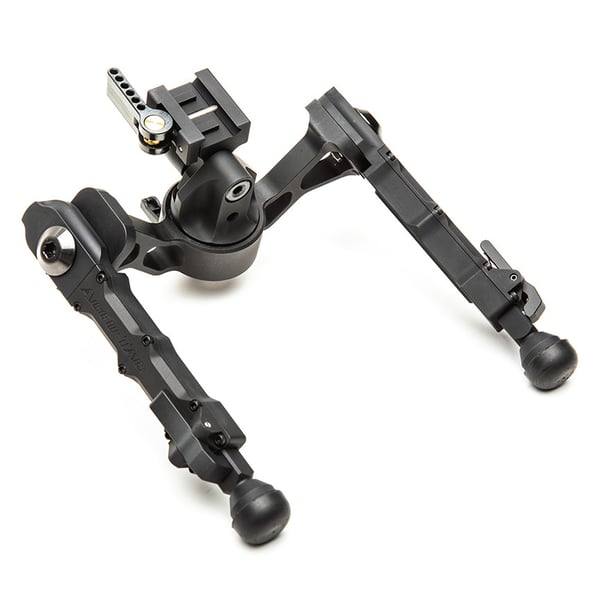

The quick detach rail mount is simple, quick, and very secure. The quick detach attaches to a 1913 Picatinny rail and mounts in seconds without the need to use extra tools for tightening. The F-Class has the ability to pan and cant. The leg design allows the shooter to quickly adjust to 5 different height positions with the advantage of being able to position each leg differently.
To engage or adjust leg position, simply pull the leg downward to move each leg independently. Leg positions can be deployed to 45° or 90°, locking securely into 4 positions through a 180° arch.
Features:
Materials 6061 T6 Aluminum alloy / High strength steel hardwareMin. Height ( Legs at 45° ) 5.25”
Min. Height ( Legs at 90° ) 6.75”
Max. Height ( Legs at 90° ) 8.25”
Min. Stance ( Legs at 45° ) 12.25”
Max. Stance 16.5”
Closed Position Width 7.5”
Closed Position Length 7.5”
Weight 28.2 oz
Color Flat Black
Coating Type III ( MIL-SPEC ) Hard Anodize
